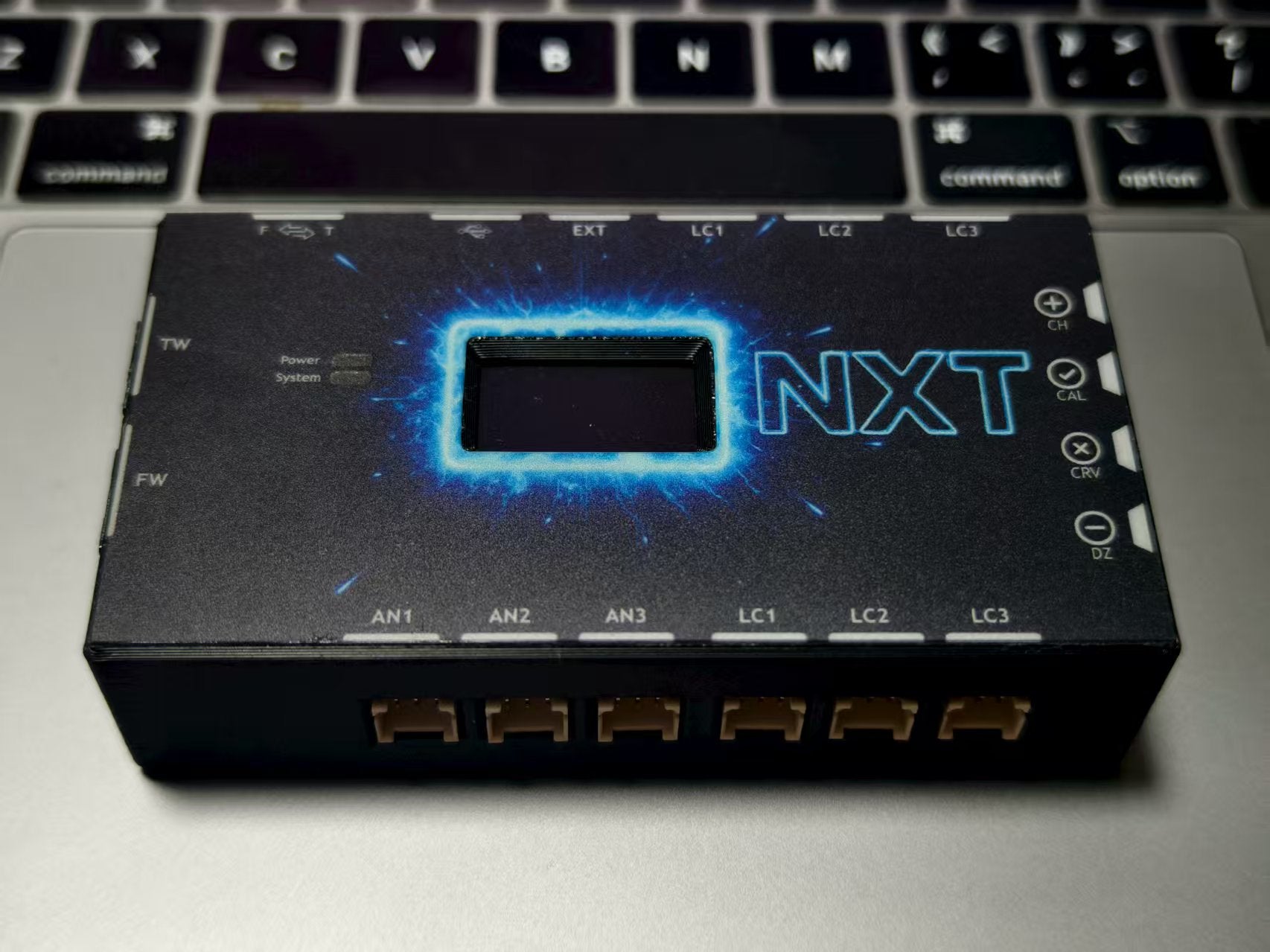

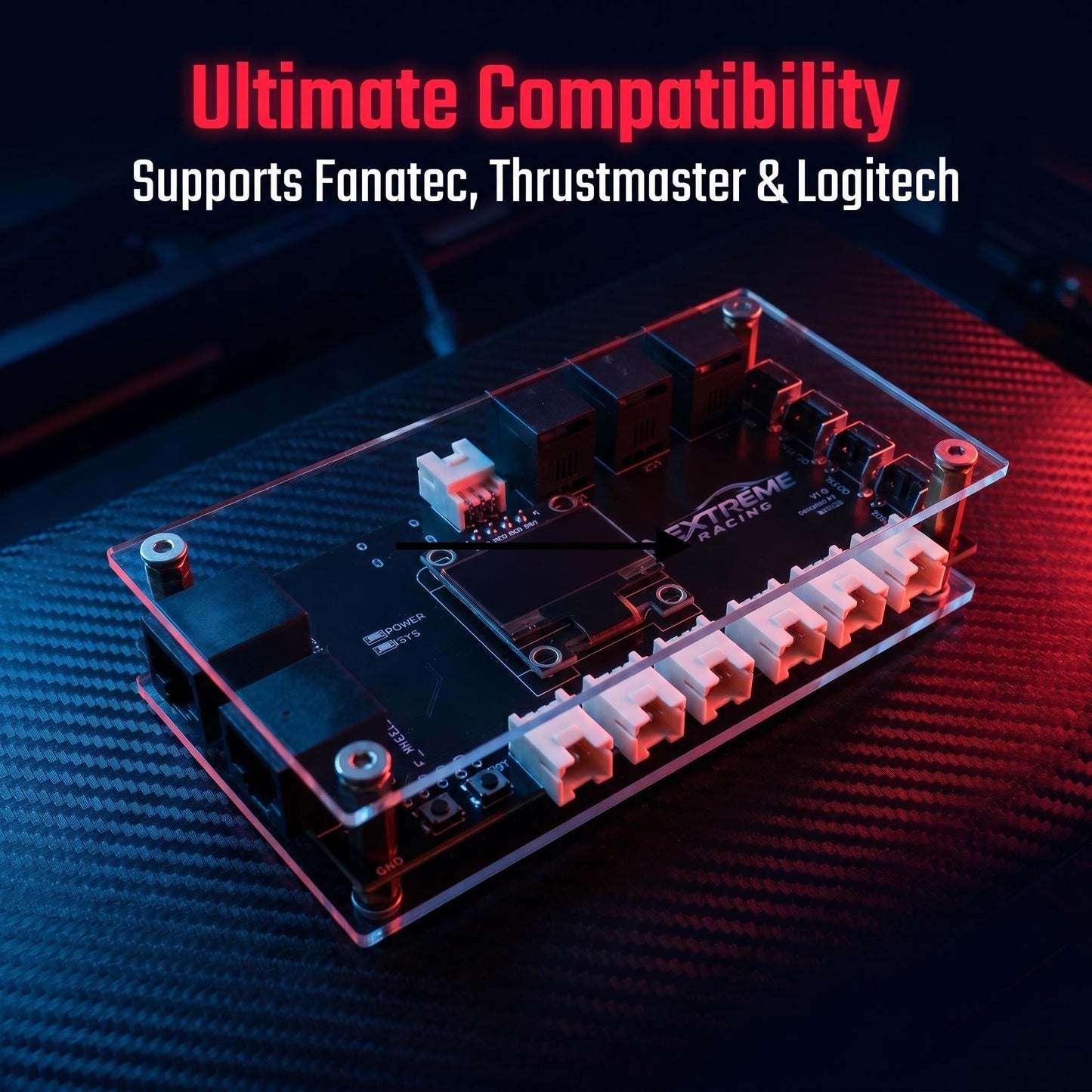

NXT Pedal Box V1.0

The first dual-mode pedal control box, switching between Fanatec and Thrustmaster modes with one click, compatible with most Fanatec and Thrustmaster docks.
The newly upgraded and more powerful MCU provides a data refresh rate of over 100Hz and a three-channel 24-bit data acquisition solution, achieving higher accuracy and greater compatibility. Exclusively developed firmware supports custom throttle and brake curves, surpassing the stock pedal in every way.

Core features:
1. Supports 3-way potentiometer/Hall input and 3-way pressure sensor input, and can freely configure 4-way output (throttle/brake/clutch/handbrake)
2. Support input calibration to provide stronger compatibility
3. Support custom throttle/brake curves
4. Support setting 4-way input dead zone
5. Provide multiple configuration files
6. All local operations, no need to connect to a PC

The following docks are supported:

Fanatec DDP, DD+, Podium DD1, Podium DDF1, CSL DD, CSL Elite

Thrustmaser T300, T598, T-GT, T-GT2

The following pedals are supported:

Simagic P1000, Simagic P2000, Conspit CPP Lite, Conspit CPP EVO, Heusinkveld series and similar products
